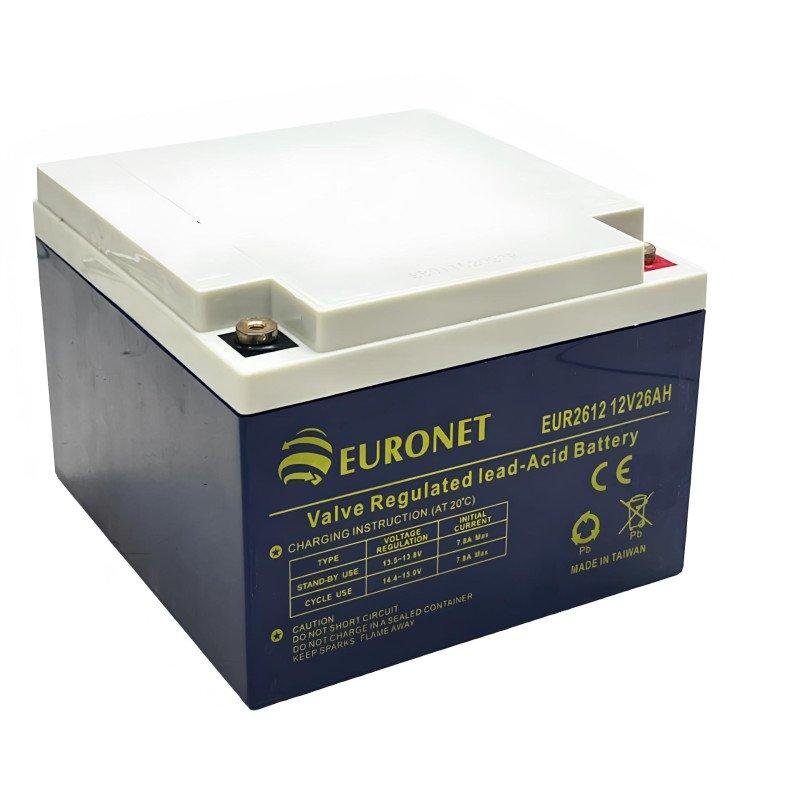

EURONET Valve Regulated Lead-Acid Battery - 12V 26Ah - Maintenance-Free
Model No.: EUR2612 12V26AH
Voltage Per Unit: 12V
Capacity: 26Ah @ 10hr-rate
Cells Per Unit: 6
Body Size: 165 × 175 × 125 mm (L × W × H)
Weight: Approx. 8.0 Kg
Max. Discharge Current: 300A (5 sec)
Internal Resistance: Approx. 8 mΩ
Operating Temperature Range:
– Discharge: –20°C to +50°C
– Charge: –20°C to +50°C
– Storage: –20°C to +50°C
Normal Operating Temperature: 25°C ±5°C
Floating Charging Voltage: 13.50–13.80V DC/unit @ 25°C
Max. Charging Current: 7.8A
Equalization & Cycle Service Voltage: 14.70–15.00V DC/unit @ 25°C
Self-Discharge: Up to 6 months at 25°C; shorter intervals at higher temperatures
Terminal Type: T3 / T10
Application: UPS – Solar Systems – Emergency Lighting – Telecom – Backup Power
Product Features
- Maintenance-free operation – no water topping required
- High performance – consistent power delivery and recovery capability
- Ultra long-life service – durable and reliable over extended cycles
- Wide operating temperature range – suitable for diverse environments
- Low pressure venting system – ensures safe and stable operation
- Non-spill sealed construction – safe for indoor and outdoor use
- Low self-discharge – extended shelf life and minimal maintenance
- High charge acceptability – efficient energy absorption
- User-friendly installation – compact and robust design
Technical Specifications
| Specification | Details |
|---|
| Model No. | EUR2612 12V26AH |
| Voltage | 12V |
| Capacity | 26Ah @ 10hr-rate |
| Cells Per Unit | 6 |
| Body Size | 165 × 175 × 125 mm |
| Weight | Approx. 8.0 Kg |
| Max. Discharge Current | 300A (5 sec) |
| Internal Resistance | Approx. 8 mΩ |
| Operating Temperature | –20°C to +50°C |
| Float Charging Voltage | 13.50–13.80V |
| Max. Charging Current | 7.8A |
| Cycle Service Voltage | 14.70–15.00V |
| Terminal Type | T3 / T10 |
| Shelf Life | Up to 6 Months @ 25°C |
