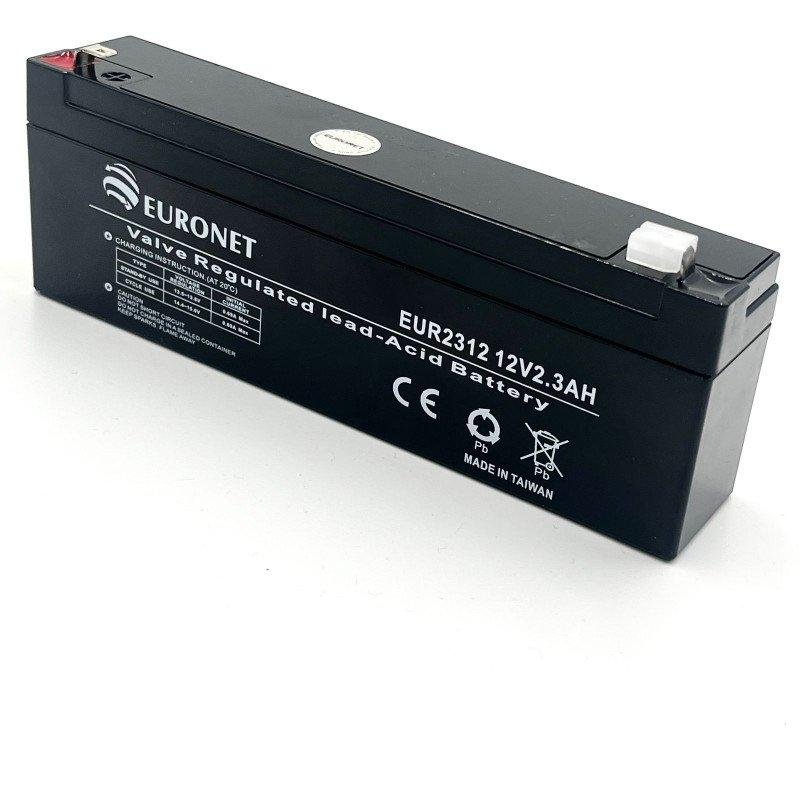

EURONET Valve Regulated Lead-Acid Battery - 12V 2.3Ah

EURONET Valve Regulated Lead-Acid Battery - 12V 2.3Ah - Compact & Maintenance-Free

Model No.: EUR2312 12V2.3AH
Voltage Per Unit: 12V
Capacity: 2.3Ah @ 10hr-rate
Cells Per Unit: 6
Dimensions: 180 × 35 × 63 mm (L × W × H)
Weight: Approx. 0.9 Kg
Max. Discharge Current: 34.5A (5 sec)
Internal Resistance: Approx. 58 mΩ
Operating Temperature Range:
– Discharge: –20°C to +50°C
– Charge: –20°C to +50°C
– Storage: –20°C to +50°C
Normal Operating Temperature: 25°C ±5°C
Float Charging Voltage: 13.50–13.80V DC/unit @ 25°C
Max. Charging Current: 0.39A
Equalization & Cycle Service Voltage: 14.70–15.00V DC/unit @ 25°C
Self-Discharge: Up to 6 months at 25°C; shorter intervals at higher temperatures
Terminal Type: Faston Tab 187 (T1)
Container Material: ABS (UL94-HB); UL94-V0 available on request
Application: Security Systems – Emergency Lighting – Portable Devices – Backup Power – Small Electronics

Product Features

• Compact 12V 2.3Ah sealed lead-acid battery – ideal for low-power applications
• Maintenance-free operation – no water topping required
• Spill-proof and sealed construction – safe for indoor use
• High performance – consistent power delivery and recovery capability
• Long service life – durable and reliable over extended cycles
• Wide operating temperature range – suitable for varied environments
• Low self-discharge – extended shelf life and minimal maintenance
• High charge acceptability – efficient energy absorption
• User-friendly installation – lightweight and space-saving design

Technical Specifications
