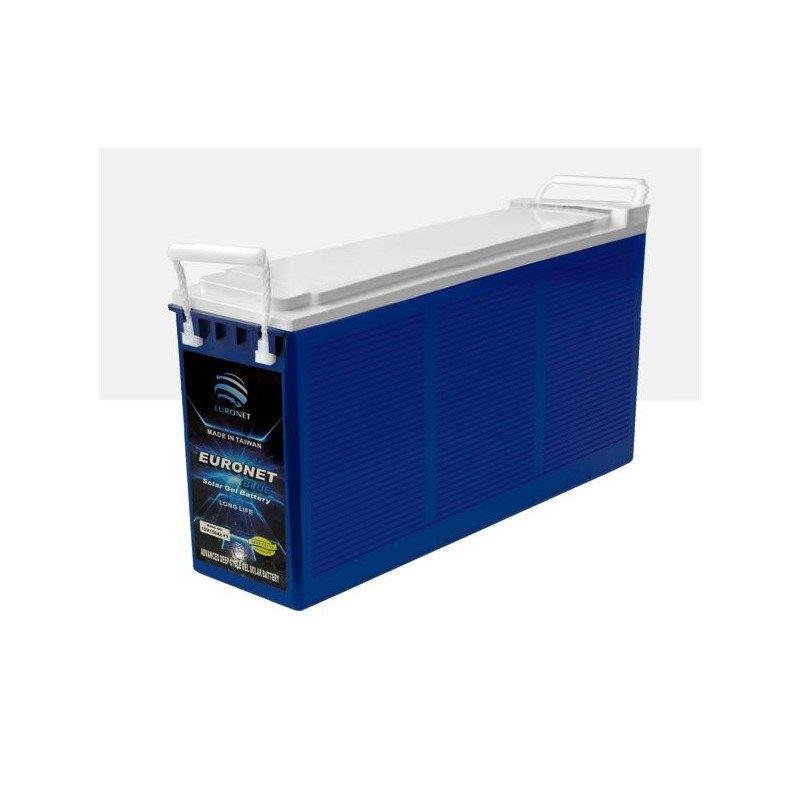

EURONET Solar Deep Cycle Slim Gel Battery - 12V 100Ah
Designed for solar energy systems and high-demand applications, the EURONET Slim Gel Battery offers reliable deep cycle performance in a compact form factor. With maintenance-free operation and long service life, it's ideal for both residential and commercial use.
Product Specifications
- Cells Per Unit: 6
- Voltage Per Unit: 12V
- Capacity: 100Ah (10hr-rate to 1.75V per cell at 25°C)
- Max. Discharge Current: 800A (5 seconds)
- Internal Resistance: Approx. 3.5mΩ
- Operating Temperature Range: Discharge: -40°C ~ 50°C, Charge: -20°C ~ 50°C, Storage: -20°C ~ 50°C
- Normal Operating Temperature: 25°C ± 5°C
- Floating Charging Voltage: 13.50 – 13.80V DC
- Max Charging Current: 25A
- Equalization & Cycle Service Voltage: 14.70 – 15.00V DC
- Self-Discharge: Can be stored for over 6 months at 25°C. Charge before use. Storage time shortens at higher temperatures.
- Terminal: T14
- Container Material: ABS (UL94-HB); UL94-V0 available on request
- Dimensions: 510mm (L) × 110mm (W) × 234mm (H)
- Weight: Net – 30kg / Gross – 30.5kg
Applications
- Electric tools
- Mobility vehicles
- Lawn mowers
- Golf trolleys & carts
- Portable apparatus & instruments
- Electric toys
- Illumination lights
- Fire alarms
- Portable power systems
- Wheelchairs
- Medical equipment
- UPS systems
- Emergency lighting
- General purpose backup
- Fire & security systems
Key Features
- User Friendly
- Low Maintenance
- High Performance
- Ultra Long Life Service
- High Recovery Capability
- High Charge Acceptability
- No Water Topping Required
- Maintenance-Free Operation
- Low Pressure Venting System
- Non-Spill Sealed Construction
- Low Self-Discharge – Long Shelf Life
- Wide Operating Temperature Range
