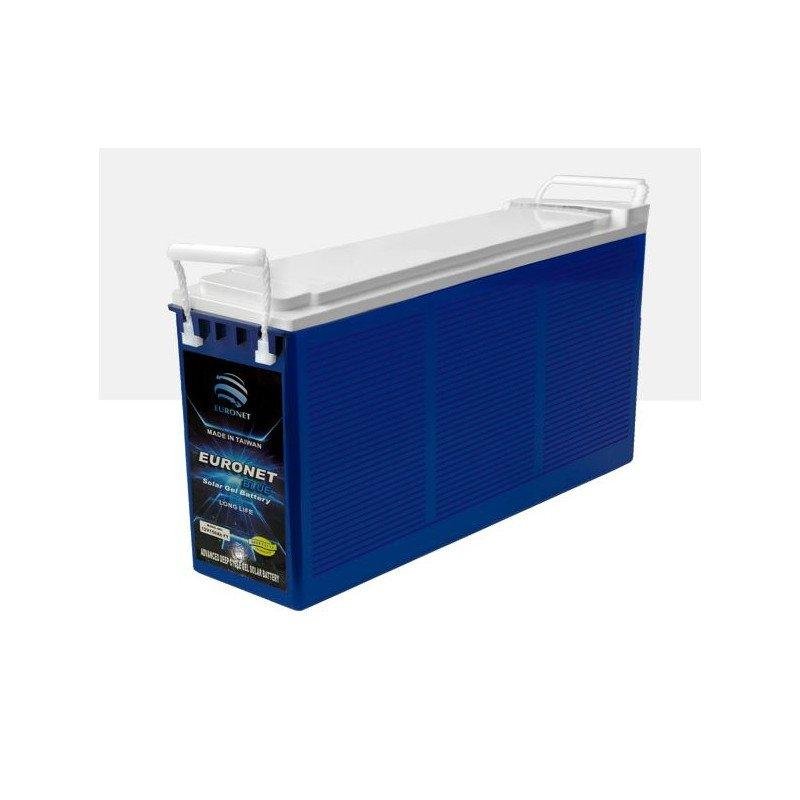

EURONET Solar Deep Cycle Slim Gel Battery - 12V 150Ah - Maintenance-Free
Model Description: Solar Deep Cycle Slim Gel Battery Voltage Per Unit: 12V Capacity: 150Ah @ 10hr-rate to 1.85V per cell @ 25°C Cells Per Unit: 6 Max. Discharge Current: 1000A (5 sec) Internal Resistance: Approx. 2.6 mΩ Operating Temperature Range: – Discharge: –40°C to +50°C – Charge: –20°C to +50°C – Storage: –20°C to +50°C Normal Operating Temperature: 25°C ±5°C Floating Charging Voltage: 13.50–13.80V DC/unit @ 25°C Max. Charging Current: 37.5A Equalization & Cycle Service Voltage: 14.70–15.00V DC/unit @ 25°C Self-Discharge: Up to 6 months at 25°C; shorter intervals at higher temperatures Terminal Type: T14 Container Material: ABS (UL94-HB); UL94-V0 available on request Dimensions: 570 × 110 × 290 mm (L × W × H) Weight: Net – 44.5 Kg / Gross – 45 Kg Application: Solar Systems – UPS – IT Infrastructure – Data Centers – Power Plants – Telecom Equipment
Product Features
Slim gel battery design – optimized for solar and backup power systems
Maintenance-free operation – no water topping required
High performance – consistent power delivery and recovery capability
Ultra long-life service – durable and reliable over extended cycles
Wide operating temperature range – suitable for extreme environments
Low pressure venting system – ensures safe and stable operation
Non-spill sealed construction – safe for indoor and outdoor use
Low self-discharge – long shelf life and minimal maintenance
High charge acceptability – efficient energy absorption
User-friendly installation – compact and robust design
Technical Specifications
Specification
Details
Voltage
12V
Capacity
150Ah @ 10hr-rate
Cells Per Unit
6
Max. Discharge Current
1000A (5 sec)
Internal Resistance
Approx. 2.6 mΩ
Operating Temperature Range
–40°C to +50°C (Discharge)
Charging Voltage (Float)
13.50–13.80V
Charging Voltage (Cycle)
14.70–15.00V
Max. Charging Current
37.5A
Terminal Type
T14
Container Material
ABS (UL94-HB / UL94-V0 optional)
Dimensions
570 × 110 × 290 mm
Weight
N.W. 44.5 Kg / G.W. 45 Kg
