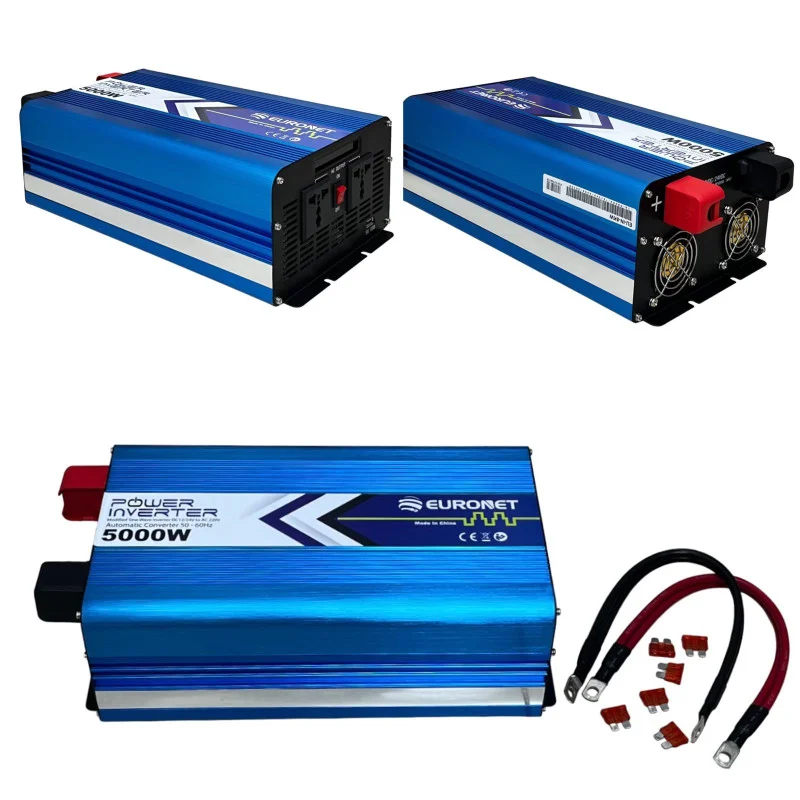

EURONET Power Inverter - 5000W - DC12V/24V to AC220V - Modified Sine Wave
Model Description: High-Capacity Modified Sine Wave Power Inverter
Output Power: 5000 Watts
Input Voltage: 12VDC / 24VDC
Input Voltage Range: 9.6VDC – 30.5VDC
Battery Compatibility: Lead Acid / Lithium Battery
Conversion Capability:
– 12V Battery Mode: 80% Max
– 24V Battery Mode: 100% Max
Rated Output Voltage: 220VAC ±10%
Rated Output Frequency: 50–60Hz
Output Waveform: Modified Sine Wave
Cooling Method: Intelligent Temperature-Controlled Fan
Maximum Efficiency: 90%–93%
Protection Functions:
– Battery Overvoltage
– Battery Undervoltage
– Over-Temperature
– Output Short Circuit
– Output Overload
Technology Highlights: Microprocessor-Controlled – LCD Display – Dual-Voltage Input – Smart Cooling
Dimensions: 340 × 190 × 110 mm (L × W × H)
Application: Industrial – Off-Grid – Emergency Backup – Automotive – High-Power Equipment
Product Features
- 5000W modified sine wave inverter – powerful and reliable for demanding applications
- Supports both 12V and 24V battery systems – flexible dual-voltage input
- Intelligent fan cooling – maintains safe operating temperature
- LCD display – real-time monitoring of performance and fault codes
- High conversion efficiency – up to 93% for optimal energy use
- Multiple protection layers – ensures safe and stable operation
- Durable and compact design – easy to install and transport
- Ideal for off-grid setups, workshops, and emergency power solutions
Fault Codes & Solutions
| Code | Description | Solution |
|---|
| 8 | Output Overload | Disconnect load, restart, and reduce load for future use |
| 32 | Battery Undervoltage | Turn off inverter and recharge battery; check actual voltage under load |
| 33 | Fuse Blown | Contact customer service to replace fuse (included in packaging) |
| 64 | Battery Overvoltage | Restart inverter to reset voltage mode |
| 56 | Output Short Circuit | Disconnect load and restart; check for damage |
| 12 | Machine Over-Temperature | Reduce load and ensure proper ventilation at inlet/outlet |
