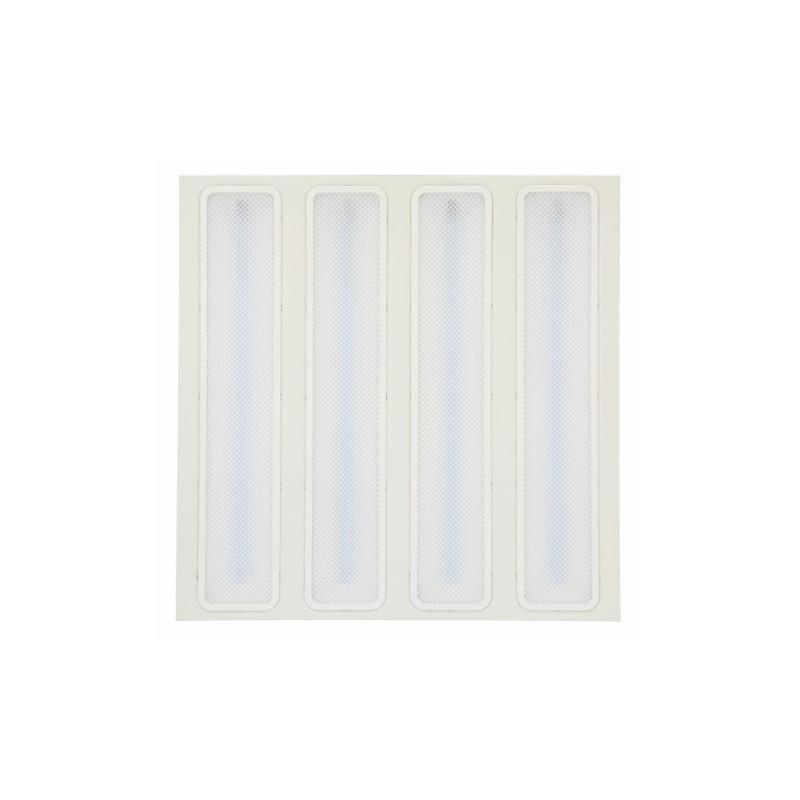

V.Max LED Grille Panel Light | 96W | 9600Lm | 595×595mm | White | Indoor
Model No.: V-LDQ0196S
Voltage: AC220–240V / 50–60Hz
Power Consumption: 96W (SMD)
Luminous Flux: 9600Lm – high brightness for large indoor spaces
CRI: ≥70 – standard color rendering for general lighting
Beam Angle: 120° – wide coverage illumination
PF: >0.5
Surge Protection: 2KV
IP Level: IP20 – indoor use
LED Type: SMD
Drive: Non-isolated constant current drive
CCT: White
Surface Treatment: White finish
Material: Iron + PC
Body Size: 595 × 595 × 31mm
Cut-Out (Hole Size): 575 × 575mm
Operating Temperature (Ta): 45°C
Key Features
- High luminous efficiency (9600Lm) – powerful brightness for professional and decorative environments
- Soft, uniform light – high-transmittance PC shell ensures glare-free illumination
- Wide 120° beam angle – covers large areas evenly
- Dedicated power supply box – stable drive with fixed protection
- High thermal conductivity radiator – fast heat dissipation for longer lifespan
- Durable construction – iron + PC body for strength and reliability
- Surge protection (2KV) – safe and stable operation
