MODI LED Driver | LED Power Supply | MD-60HY20 | DC 12V | 80W / 120W / 200W / 300W /400W | IP20 | Aluminum + PC | Industrial & LED Applications
Input Voltage: AC220–240V / 50–60Hz
Output Voltage: DC 12V
Lifetime: 25,000 hours
PF: >0.5
Surge Protection: 2KV
Ta: 45°C
Material: Aluminum + PC
Environment: Indoor
Design Philosophy
The MD-60HY20 series is engineered for stable DC 12V output, making it suitable for a wide range of electronic applications. It is widely used in:
- Industrial control systems
- LED lighting and LED lamps
- Communication equipment
- Computer chassis and digital products
- Other electronic fields requiring reliable DC power

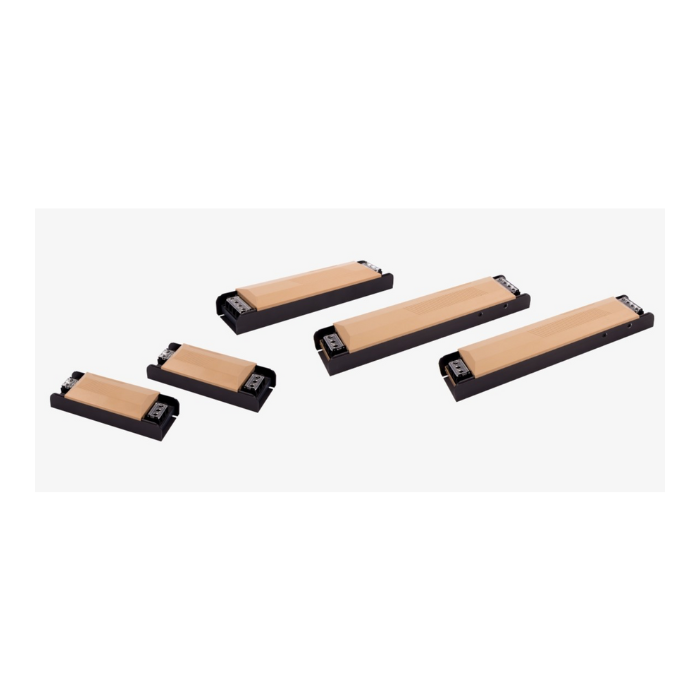

Available Models
| Model No. | Power | Output Current | Body Size (mm) |
|---|
| MD-60HY20-80-12V | 80W | 12V / 6.6A | L138 × W51 × H27 |
| MD-60HY20-120-12V | 120W | 12V / 10A | L138 × W51 × H27 |
| MD-60HY20-200-12V | 200W | 12V / 16.6A | L205 × W51 × H27 |
| MD-60HY20-300-12V | 300W | 12V / 25A | L238 × W51 × H27 |
| MD-60HY20-400-12V | 400W | 12V / 33.3A | L238 × W51 × H27 |
Key Features
- Stable DC 12V output – reliable for sensitive electronic equipment
- Multiple wattage options (80W–400W) – scalable for different power requirements
- Compact aluminum + PC body – durable, lightweight, and efficient heat dissipation
- Surge protection up to 2KV – enhanced safety and reliability
- Long service life (25,000 hours) – consistent performance over time
- Wide application range – suitable for industrial, commercial, and residential electronics
