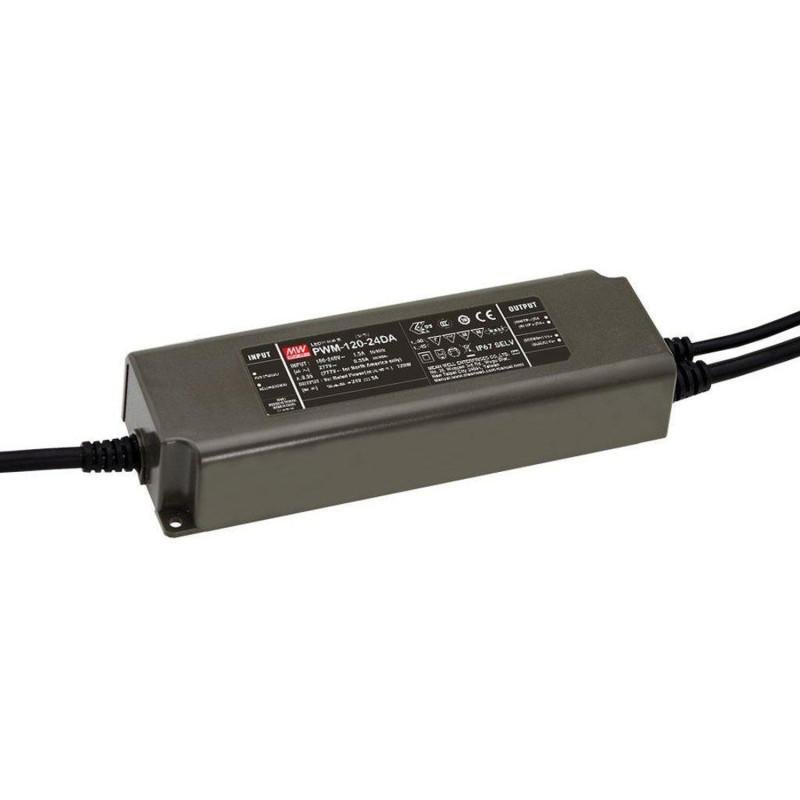

Mean Well PWM-120-24DA LED Driver - 120W | 24V | 5A | DALI Dimmable | IP67 | Model PWM-120-24DA
Model No.: PWM-120-24DA
Brand: Mean Well
Product Type: AC-DC Enclosed LED Power Supply
Output Power: 120W
Output Voltage: 24V DC (Fixed)
Output Current: 5A
Input Voltage Range: 100-240V AC, 50/60Hz
Dimming Technology: DALI - digital addressable lighting interface
Control Signals: No external control signal required
Form Factor: Enclosed
Mounting Method: Chassis mount
Dimensions: 191mm × 63mm × 37.5mm
IP Rating: IP67 - waterproof and dustproof for outdoor and indoor use
LED Driver Type: PWM Output - ideal for constant voltage LED applications
Number of Outputs: 1 voltage / 1 current
Operating Temperature (Ta): Up to 50°C
Lifetime: Designed for long-term reliability in demanding environments
The Mean Well PWM-120-24DA is a high-performance LED driver engineered for precision dimming and stable output. With DALI compatibility and IP67 protection, it’s ideal for architectural, commercial, and outdoor lighting systems.
Key Features
- PWM Output: Ensures flicker-free dimming for constant voltage LEDs
- DALI Dimmable: Compatible with smart lighting control systems
- IP67 Rated: Fully sealed for outdoor and wet environments
- Stable Output: 24V fixed voltage with 5A current capacity
- Universal Input: 100-240V AC for global compatibility
- Compact Design: Slim profile for easy integration
- Reliable Build: Mean Well quality with long operational lifespan
- Chassis Mount: Secure and professional installation
Data Sheet: Mean Well PWM-120-24DA
